AUDIO SYSTEM
The Venue has been restyled in 2018 transforming the club in a single room 4000 PAX capacity with a main stage 12 meters by 4 mt and elevated DJ console.
Also the sound and lighting system have been updated with the state of the art equipment.
TECHNICAL DATA SHEET AUDIO SYSTEM
Sound system by VOID ARCLINE 15“, installed at Mia clubbing for the first time in Italy. the system is controlled by an IDR8 ALLEN&HEATH that controls the MIXER and DSP for the control of all sound distrubution in all venue areas.
MAIN dance floor speakers:
with a total power of 14.000 WATT configured in array. 12.000 Watts of SUBWOOFER VOID STASYS X 4 SUB DA 3200 WATT each..
VOID Amplifiers
for each speaker
The subwoofer have been placed in front of the DJ console in order to grant a perfect sound distribution around the dance floor.
The speaker in the dance floor are 8 in line array
There’s also 20 side Electrovoice 15” speakers to enforce the sound distribution around the dance area.
And 10 speaker void 10” around the venue.
TECHNICAL SHEET LIGHT AND EFFECTS
MAIN ROOM LIGHTING AND EFFECTS SYSTEM Resident Equipment

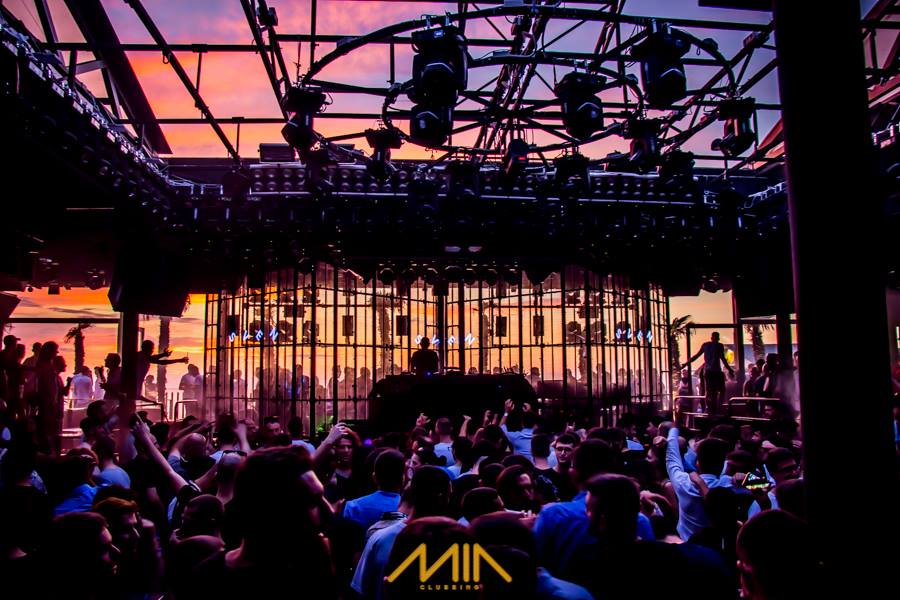

TRANSPARENT SKY ROOF (FULL OPENABLE)
Led wall:
- Console back Stage ledwall: L=15,00 meters X D=4 meters (Full color Transparent Led Wall, High Resolution 7 mm pitch, High brightness 5000 nits.)

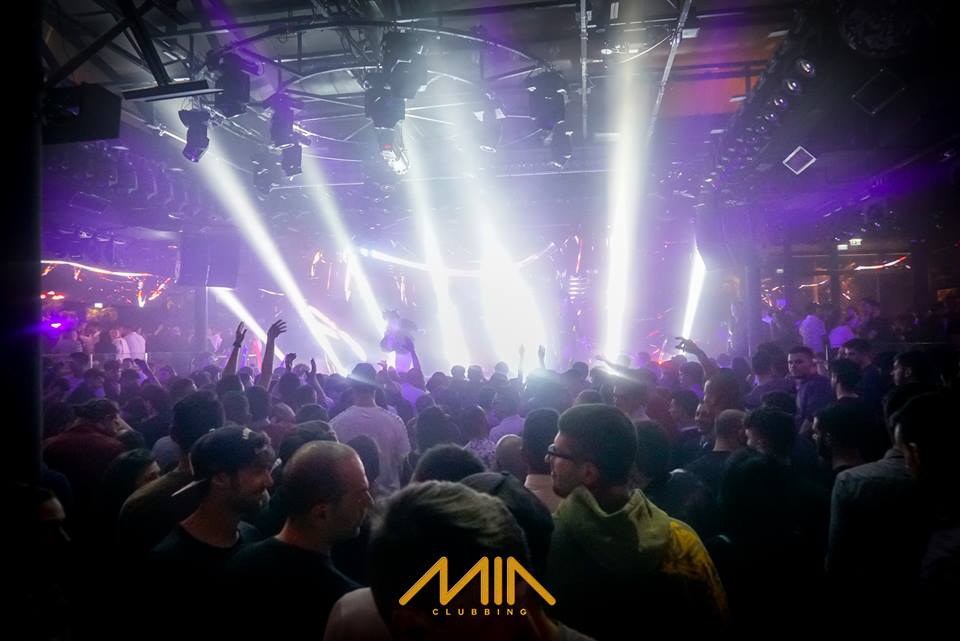

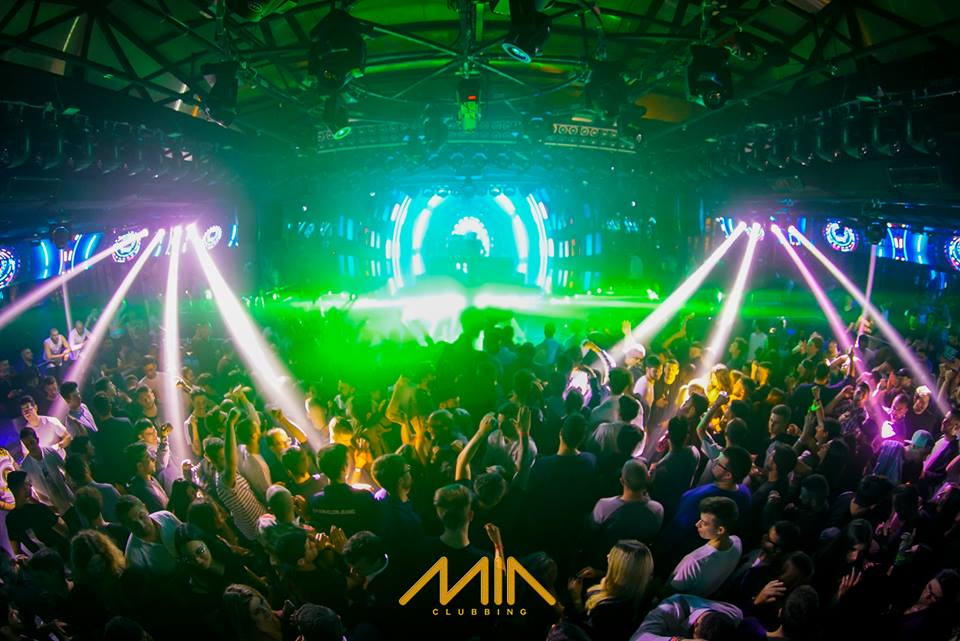

Lighting and effects system MAIN ROOM:

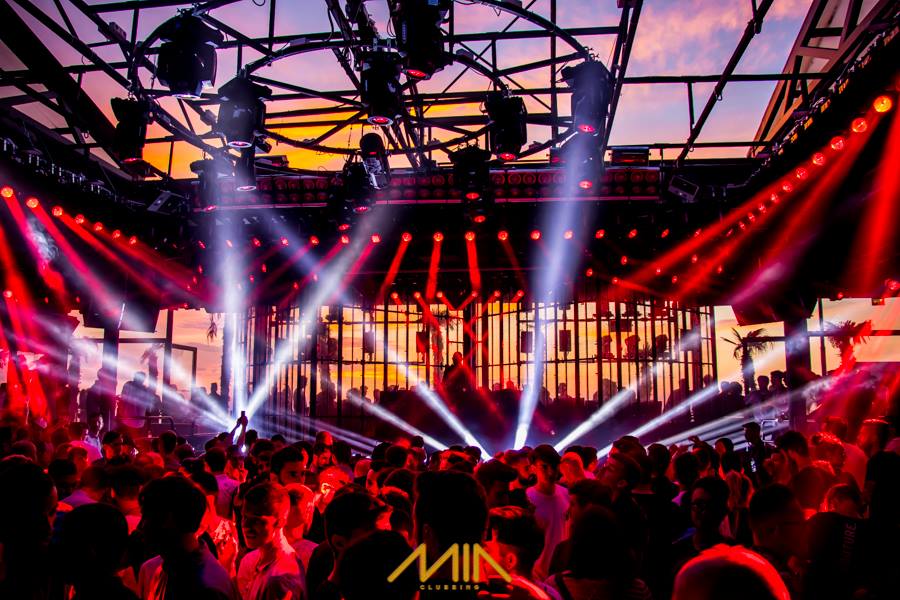

- 200 units of 240w (5r) Clay Paky Sharpy around stage and dancing floor
- 12 units of 70 W beam LED moving head
- 62 units 650W blinder light
- Led wall right and left console high resolution 7.62 mm pitch, High brightness 3000 nits.
- 4 units 4 watt each green up 25K animation laser
- 10 units RGB laser 3watt up to 20K animation laser
- 5 Le maitre HAZE machine MVS
- 60 units laser bars parallel beam( 8 beam for bars) RGB systems tot. 480 beam laser with TILT control
- 4 mirror balls motor less
- 20 Martin Atomic 3000 up console and floor perimeter

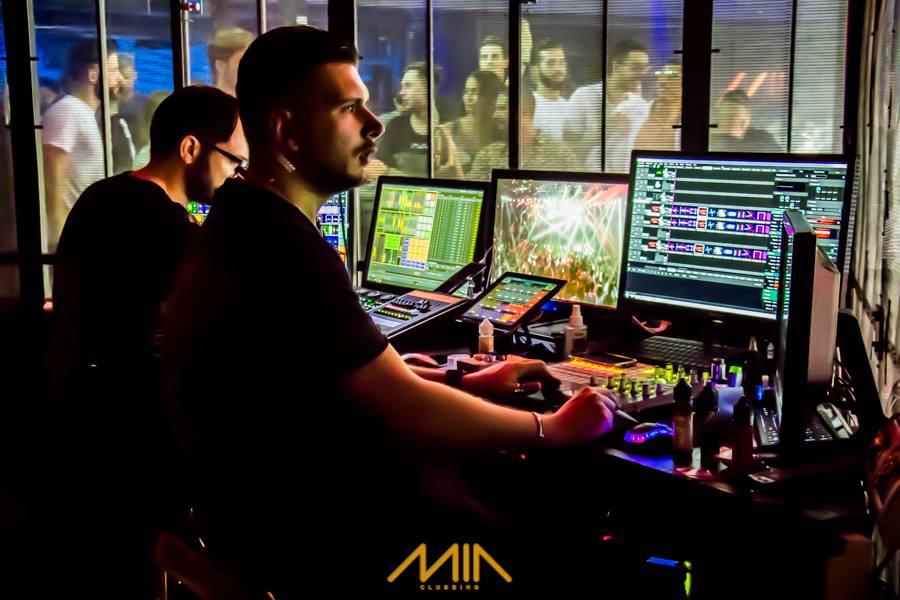

- 01 ETC ION/GIO art-net control system
- 20 units of 190w (5r) Sharpy around dancing floor
- 01 MADRIX wall 15x1,50 mt, over 35 dmx universes with pixel bars RGB
- 03 units RGB laser 3watt up to 20K animation laser
- 01 Avolites Tiger dmx control
- 12 blocks from 1200 w blinding 15 kv
EFFECTS
- 2 x Snow machines
- 2 x bubblues machines
- 2 units powerful confetti cannons (very impressive)
- stremers

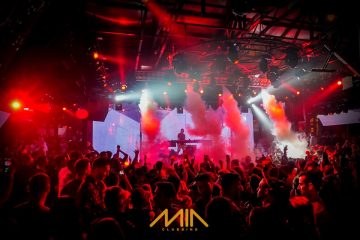

- 4 cannon co2 front stage
- 4 cannon co2 dance flor
- 1 gun co2
ENTRANCE LED WALL
- Entrance Led Wall Floor: L=9,00 meters X H=2,80 meters
- Full color Leds, high resolution 7.62 mm pitch, High brightness 3000 nits.
- Entrance Led Wall L=2,80 meter X H 3.50 metes
- Full color Leds, high resolution 7.62 mm pitch, High brightness 3000 nits.
- Panasonic 3d projector on transparent semi-transparent motor powered by 10,000 anzilumen
